In reviewing Ed’s Good Plane Living installation post of the AeroSplat cowl flaps I wanted to go a step further with a design that had fewer pieces and easier assembly. I came up with three custom parts (Van’s P/N F-10108C will be used and F-10108A will be modified to add angle brackets but that won’t require custom parts). Here are pictures of my design.

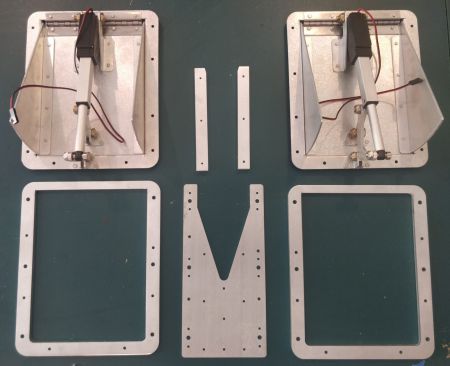

Exploded view

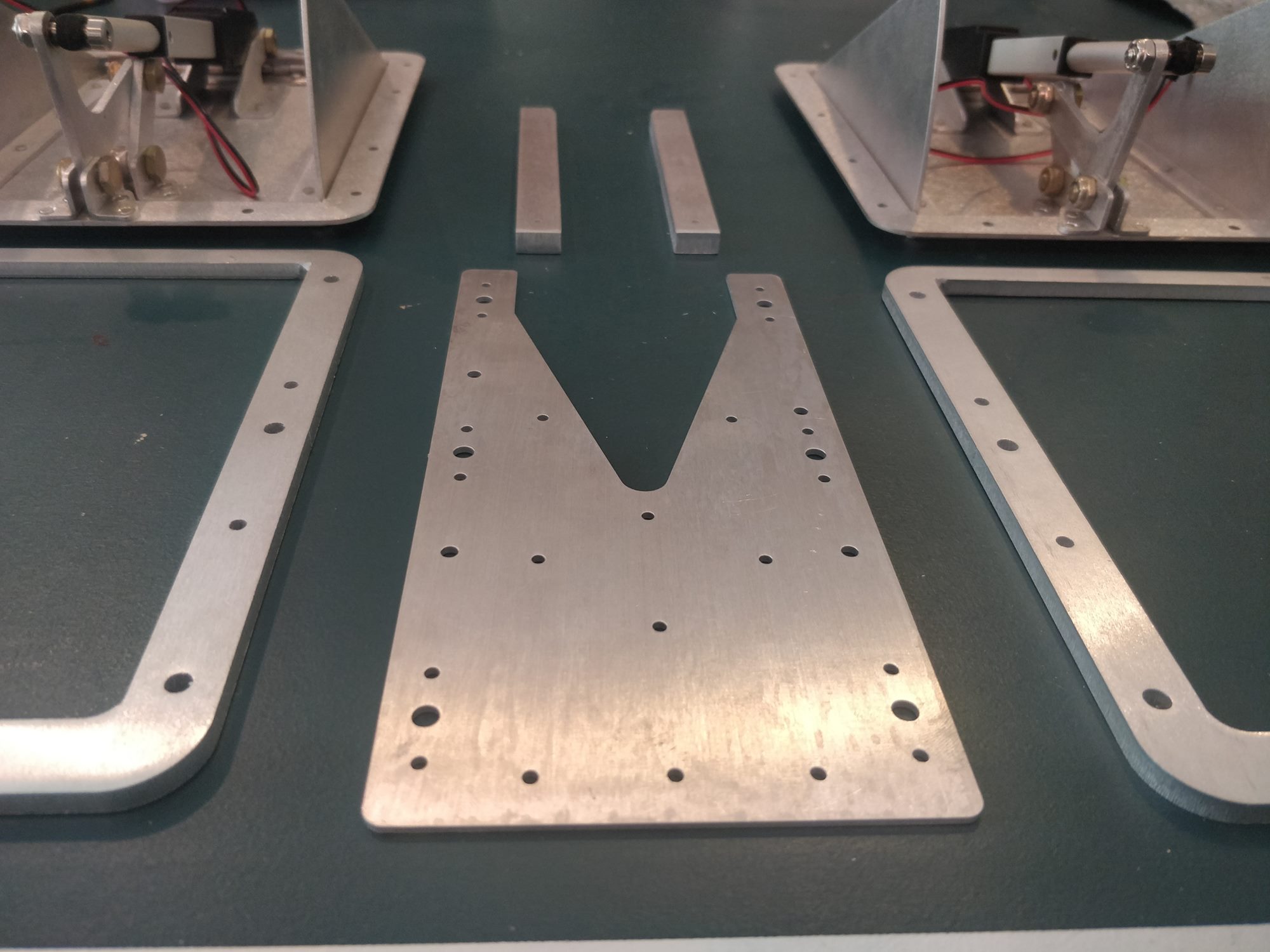

The part thickness varies
Assembled view, pre-riveting/nut plates
Design files are available for download: Link, I did not end up installing cowl flaps so I do not know if they design is solid – you will need to do your own validation.
