How to add a Mantus anchor to a Seawind 1160

Yet another substantial, multi-step process… Point of note, Seawind 1160s from the factory have 50 meters (165 feet) of 8mm short link galvanized chain. After the mock up that Baja Naval completed in Ensenada it was up to me to fabricate a new anchor roller bracket once back in the US. Before leaving the boat in La Paz I took what I thought were a lot of pictures and measurements to ensure that on my return I would have a bracket that would fit.

The first step was to have a waterjet company cut the left and right sides out of 316 stainless. I went with 3/8 inch plate but if I did it again I would reduce that to 1/4 inch plate to save weight.

Stainless plate cutout template

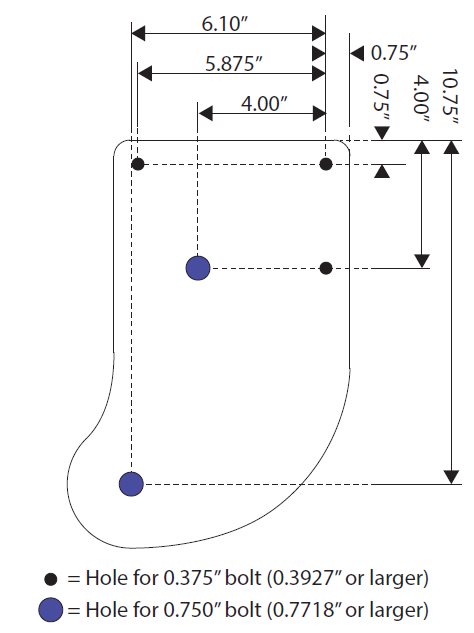

Then holes were drilled for the mounting bolts and the anchor roller

Using bolts to hold the correct angle so that the support bar could be welded

Welding complete, the material (316) and thickness made this a challenging job requiring a lot of power and heat

Grinding 316 taught me how tough this metal is, a slow process…

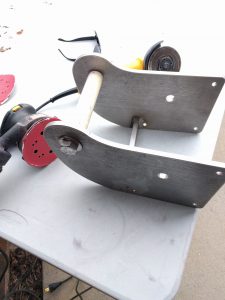

Final product ready to be mounted!

Hauling a 30 pound bracket with all the mounting bolts down to La Paz was a bit of a pain. Thankfully Delta let my checked bags weigh 75 pounds. Even more thankful that I passed through Mexican customs without paying the 16% duty. Arriving at the boat, it was a relief to find that the angles matched perfectly and the bracket slid right into place. Whew. That was a big sigh of relief since I don’t need a 30 pound anchor. I did have to use my Dremel to make a cut out for the anchor chain, simple enough and it looks good.

Side view of mounted anchor roller and Mantus anchor

Stern view showing the pinched in angle of the bracket plates

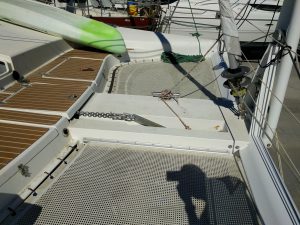

Top view showing the slight protrusion of the anchor shaft

It was not possible to provide clearance between the anchor roll bar and the cross member so we do place a bit from a pool noodle between them to protect the cross member. After three weeks it seems to be a good solution and not too much of a pain when dropping or raising the anchor to grab. Now we can sleep well with the great holding we get from our Mantus anchor!
